Encrypted Ethernet Tunnel Software Client used with FT-6602/6630

FT Family Encrypted Ethernet Tunnel Software Client Creates encrypted tunnels using TCP/IP or UDP/IP Tunnels all Ethernet protocols, including multi-cast AES 256 bit encryption Compatible with Windows Vista, 7, Vistax64, 7x64, XP and XP-PRO Apears on the PC as an MS Windows Ethernet Adapter The PC looks like a node on the server network Ideal for voice and video transport The PC network connection can be wired or wireless Easy to setup and maintain A PC may have multiple client instances running simultaneously Protocol is NAT friendly Connects only with host end FT hardware products	FT-Soft CDROM
Features Description Specifications How To Order General Performance Installation Protocol Features Application Notes and Manual	Common Applications Tunneling multicast voice and video through public and/or private networks using efficient UDP/IP or TCP/IP VLAN – Ideal for tunneling ad-hoc VLAN workstations through an external IP network Serving remote laptop users over tunneled networks to ease network administration, provide remote file and device access Utilities – Gas and oil production, pipelines, electric generation, transmission and distribution Retail – Stores, kiosks, credit card machines --- especially those using wireless links Law Enforcement – Individual remote workstations Medical – AES encryption of the FT meets HIPAA requirement for securing data over open networks such as the Internet. Ideal for emergency and portable medical operations. Field sales personnel working out of the home, hotel rooms wired for high speed Internet access or cellular broadband. Financial industry – Additional security for key personnel remote secure access. Secure remote network monitoring via the Internet

DESCRIPTION

with a FT-6602/6630 encryption server. It allows a PC to participate in the encrypted network without additional hardware at the client location. The PC Client Software for the FT- 6602/6630 tunnels creates an Ethernet layer 2 encrypted tunnel through any IP network. The PC Client software appears on the PC as a MS Windows Ethernet Adapter on XP, Vista or Windows 7. The PC links to a host server FT-6602/6630. The software function is similar to traditional VPN software.

The FT PC Client software creates a layer 2 tunnel, which sets it apart from other VPN software. The layer 2 tunnel feature allows all protocols to pass between the PC and the network on the server side. The protocols include multi-cast, which is often used for VOIP voice and video applications.

The FT-6602 can host up to 25 client devices. The FT-6630 can host up to 50 client devices.

The FT series uses AES encryption and embedded FIPS 140-2 validated cryptographic module (Certificate #1051) per FIPS 140-2 Implementation Guidance section G.5 guidelines

The FT series operates through firewalls requiring only one UDP and.or TCP port, which can be any port. All Ethernet protocols are bridged, including multi-cast, Ipv6, IPX, IP, NetBEUI, etc. The FT series is straight-forward, easy to configure and maintain. The FT series has state-of-the-art AES encryption security without the configuration complexity of VPN.

The server typically has a fixed IP address. Clients may have fixed IP addresses or use DHCP to obtain their address. Dynamic DNS is supported in the FT-6602/6630.

If you need to attach an entire subnet at a location to the encrypted network, see our FT-6602 hardware product line.

Due to the encryption employed in these products,FT series products are export controlled items and are regulated by the Bureau of Industry and Security (BIS) of the U.S. Department of Commerce. They may not e exported without BIS approval.

SPECIFICATIONS

General

• Works only in conjuctions with FT-series hardware servers at the host end.
• Each Client software instance has a unique Ethernet MAC address and license key
• Supported on MS Windows XP, Vista and Windows 7 computers
• Servers are the FT-6602 with up to 25 clients, or the FT-6630 with up to 50 clients

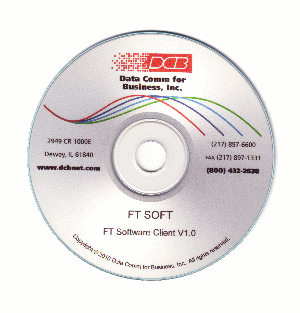

• Software is distributed on a CD ROM
• PCs can run multiple instances of the Client to connect to different servers simultaneously. Each instance has a unique Ethernet MAC identifier
• The FT-6602/6630 servers that the client connects to support dynamic DNS. Dynamic DNS is not needed at the client.
• FT-Soft uses an embedded FIPS 140-2 validated cryptographic module (Certificate #1051) per FIPS 140-2 Implementation Guidance section G.5 guidelines

Protocol Features

• The transport protocol can be either TCP/IP or UDP between FT devices. UDP is preferred for voice and video transmission.
• AES 256 bit encryption · Tunnels all Ethernet protocols, including multi-cast packets
• Protocol is NAT friendly

Performance

• Performance is limited by the host computer performance, FT server hardware, and connectiont bandwidth to server.

Installation

The FT-SOFT software is suppliled on a CDROM. Each user client instance is configured using a unique software key supplied with the CDROM. The software is installed on a PC using a Windows installer program. When installing the software, the user/administrator enters the software key as part of the installation process. A PC may have more than one instance of the PC Client software operating at the same time. There must be one license purchased for each instance of the software running on a PC.

APPLICATIONS

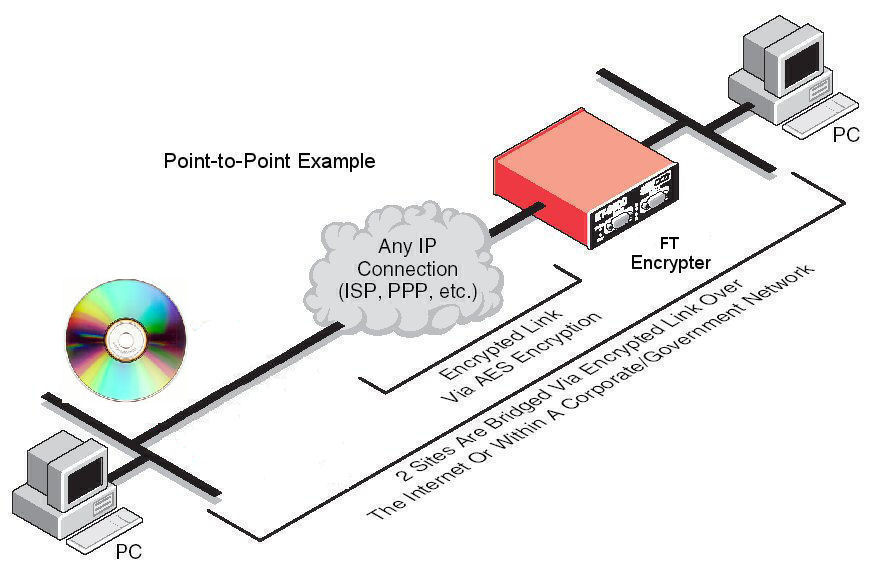

How it works

Download a copy of the manual.

ET Encrypted Bridge Quick-Start Installation Guide

A cookbook style quick start guide to installing the ET Encrypted Bridges. Illustrates common usage examples with fill-in-the-blank instructions.

ET-3302/6600 Encrypted Bridge Applications

Some ways the ET products are being used to tunnel IP traffic in the real world.

Using the ET-6601 Encrypted Bridge with EVDO & Wifi

Discusses using the ET-6601 with high speed cellular modems and 802.11 Wifi wide area connections.

ET Encrypted Bridge Installation Option

An application note describing an appliance-like installation that allows the ET to be located anywhere on the local LAN. Known around DCB as the "Single-Port Installation".

Using the ET Encrypted Bridges with 801.Q VLANs

Discusses configuring the ET products to handle 801.Q VLAN traffic. The ET supports 801.Q VLAN tagged packets, and allows a VLAN to span multiple IP networks.

Using the UT Encrypted Bridges and UT-SOFT with IP Multicast.

Discusses applying the UT products to transport VOIP multicast via non-multicast wide area networks. Examples showing IP voice dispatch radios for public service agencies. The UT supports multi-cast IP over normal uni-cast networks and allows a private multi-cast network to span multiple IP networks. The UT-SOFT software client allows any PC to be a securely connected node on a remote network

Using the ET Encrypted Bridges with IP Multicast.

Discusses applying the ET products to transport VOIP multicast via non-multicast wide area networks. Examples showing IP voice dispatch radios for public service agencies. The ET supports multi-cast IP over normal uni-cast networks and allows a private multi-cast network to span multiple IP networks.

Automating Dial-Up Router and Bridge PPP Connections

An application note that details one common method of automating the use of IP-6600 routers and ET-6600 bridges to dial multiple remote locations on a scheduled or automated basis.
