ET-6630 Gigabit Encrypted Ethernet Tunnel

---

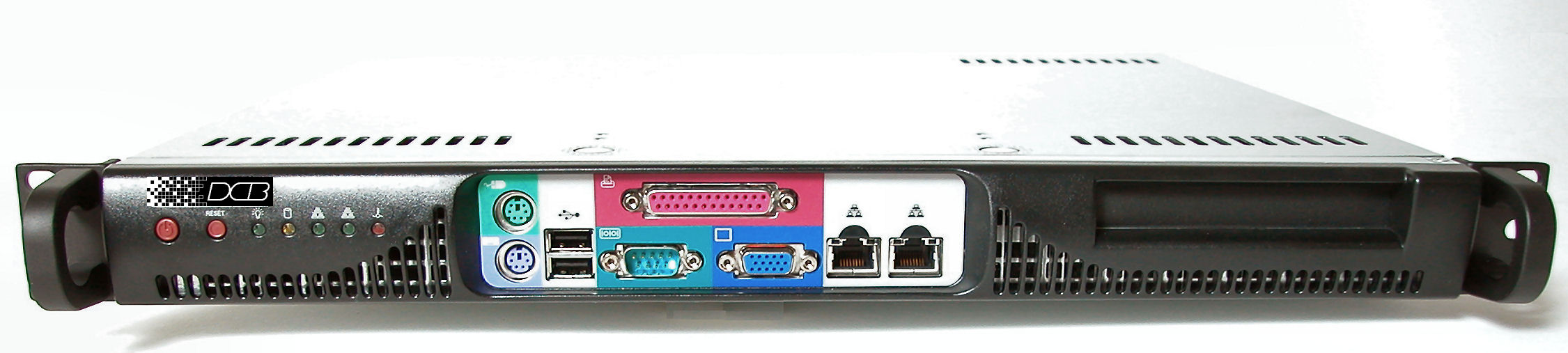

Encrypted Ethernet Tunnel Sustained 128 bit AES encryption throughput greater than 300 Mbps 10/100/1000 BaseT ethernet ports Easy to setup and maintain Supports up to 100 ET-3302 or ET-6602 clients Interoperates with small ET-3302 and ET-6602 client devices Set unit up as server or client device Extensive statistics logging and diagnostic tools Tunnels all ethernet protocols, not just IP AES or other encryption techniques Ethernet to ethernet connections Link ETs LAN to LAN Passes all ethernet protocols Compact 1U high: stand-alone or rack mounting Bridges 802.1Q tagged V-LAN trunks Uses Radius back-end authentication or an internal database	ET-6630  Front View ET-6630 - 300 Mbps Throughput
Features Description Specifications How To Order General Indicators (front panel) Controls Physical/Electrical APPLICATION Notes & Manual	Common Applications The ET-6630 is often used as the host in conjunction with multiple smaller ET remote products. In higher performance applications, ET-6630 units are used in pairs for high bandwidth point-to-point encrypted links. Utilities – Gas and oil production, pipelines, electric generation, transmission and distribution Retail – Stores, kiosks, credit card machines --- especially those using wireless links Law Enforcement – Small remote offices Medical – AES encryption of the ET meets HIPAA requirement for securing data over open networks such as the Internet. The medical industry is mandated by HIPAA to meet HIPAA privacy and security requirements over open networks. Real Estate – Connecting to and updating the database of listed homes. Field sales – personnel working out of the home, hotel rooms wired for high speed Internet access. Financial industry – Additional security on internal corporate links, branch offices, ATM machines, key personnel remote secure access. Remote office with unlimited network devices, with the ET shared using ethernet switchs or hubs. Added security within a large corporate network Office to Home 2 nets at each end, bridged via the Internet Remote network monitoring via the Internet

DESCRIPTION

The ET-6630 encrypts data between private networks using the public Internet or any private Intranet network as the transport.

The ET series uses AES or ISAAC encryption. AES is the US Government standard, selected using an open selection process, to replace DES and 3DES encryption.

The ET series operates through firewalls with only one port of your choice opened. It bridges all ethernet protocols including IPX, IP, NetBEUI and other proprietary protocols.

The ET series is straight-forward, easy to configure and maintain. The ET series has state-of-the-art AES encryption security without the configuration complexity of VPN.

The ET-6630 operates with an internal encrypted pass-phrase database or an external Radius server. The external Radius server could be the same one used for other devices in an organization's IT department.

Due to the encryption employed in these products, the ET-6630 series products are export controlled items and are regulated by the Bureau of Industry and Security (BIS) of the U.S. Department of Commerce. Export regulations may delay delivery to some areas. The ET products will not be exported or shipped for re-export to Country Group E:1 as defined by the BIS. The lower performance ET products (ET-6600, ET-3300 ) are readily exported to most other countries using the "ENC" exemption. The ET-6630 requires an individual export license for each delivery outside the USA. Our companion products, the ET-6600 and ET-3300 are exportable under similar regulations as "mass market encryption devices".

SPECIFICATIONS

General

- Two 10/100/1000BaseT ethernet ports:

Protocol Features:

• ET-6630 Sustained throughput of greater than 300Mbps
• AES 128, 256 or ISAAC encryption (or NONE)
• Web browser configuration and management from local trusted interface
• Default IP address: 192.168.0.1
• Initial setup via local serial terminal
• Supports 802.1Q VLAN
• Extensive filtering on MAC, IP, and Protocol

Indicators

• Front -- Power, Drive Activity, Ethernet 0, Ethernet 1, Overheat)


Controls

•   Setup
•   Power

Physical/Electrical

• Power requirements: 100-240 VAC, 300 watts
• ET-6630 14 ½ " x 16 ¾" x 1 ¾"
• 15 pounds

Environmental

• Operational Temperature: Office Environment
• Storage Temperature: -50 to +75 C
• Humidity: <95% Non-condensing
• Power Supply Options may affect temperature specifications

Application Notes:

• The ET products create an encrypted tunnel which passes ethernet packets between two trusted LANs.
• All ethernet protocols are bridged between two units.
• The ET only operates in conjunction with other ET units.
• One unit is required for each location.
• Multiple remote units may be connected to the same host unit.
• All ET series units are compatible and interoperate.

Click here to download a copy of the manual.

ET Encrypted Bridge Quick-Start Installation Guide

A cookbook style quick start guide to installing the ET Encrypted Bridges. Illustrates common usage examples with fill-in-the-blank instructions.

ET-3302/6600 Encrypted Bridge Applications

Some ways the ET products are being used to tunnel IP traffic in the real world.

Using the ET-6601 Encrypted Bridge with EVDO & Wifi

Discusses using the ET-6601 with high speed cellular modems and 802.11 Wifi wide area connections.

ET Encrypted Bridge Installation Option

An application note describing an appliance-like installation that allows the ET to be located anywhere on the local LAN. Known around DCB as the "Single-Port Installation".

Using the ET Encrypted Bridges with 801.Q VLANs

Discusses configuring the ET products to handle 801.Q VLAN traffic. The ET supports 801.Q VLAN tagged packets, and allows a VLAN to span multiple IP networks.

Using the UT Encrypted Bridges and UT-SOFT with IP Multicast.

Discusses applying the UT products to transport VOIP multicast via non-multicast wide area networks. Examples showing IP voice dispatch radios for public service agencies. The UT supports multi-cast IP over normal uni-cast networks and allows a private multi-cast network to span multiple IP networks. The UT-SOFT software client allows any PC to be a securely connected node on a remote network

Using the ET Encrypted Bridges with IP Multicast.

Discusses applying the ET products to transport VOIP multicast via non-multicast wide area networks. Examples showing IP voice dispatch radios for public service agencies. The ET supports multi-cast IP over normal uni-cast networks and allows a private multi-cast network to span multiple IP networks.

Automating Dial-Up Router and Bridge PPP Connections

An application note that details one common method of automating the use of IP-6600 routers and ET-6600 bridges to dial multiple remote locations on a scheduled or automated basis.

How to Order Due to the nature of this product, please phone us at 800-432-2638 or 217-897-6600 to discuss your encryption applicaions.

DCB PART #	DESCRIPTION	PRICE
ET-6630	Encrypted Ethernet Tunnel Appliance with Two 10/100/1000BaseT ports, 300 Mbps throughput	$ 4695
Other ET series products that interoperate with the ET6630. Data sheets are here.
ET-6600	Encrypted Ethernet Tunnel Appliance with Two Async Ports, Two LAN Ports	$ 489
ET-6690	EET with one Async Port, internal V.92 Modem, Two LAN Ports	$ 789
ET-3300	EET with Two LAN Ports, No serial Async Ports	$ 329
ET-66xx-12V	9-18 VDC internal power supply option (ET-6600 only)	$ 75
ET-66xx-24V	18-35 VDC internal power supply option(ET-6600 only)	$ 75
ET-66xx-48V	36-72 VDC internal power supply option(ET-6600 only)	$ 75
ET-66xx-125VDC	125 VDC external power supply option	$ 125
